Navien’s WUA500 carbon block filter delivers high-performance water filtration in a space-saving, under-sink system. With advanced filtration, easy installation, and low-maintenance design, it’s a smarter way to enjoy fresh, great-tasting water without bulky tanks and with less reliance on single-use plastic bottles.
Clean water, smart features, and zero hassle, thanks to thoughtful details that make the WUA500 stand out.

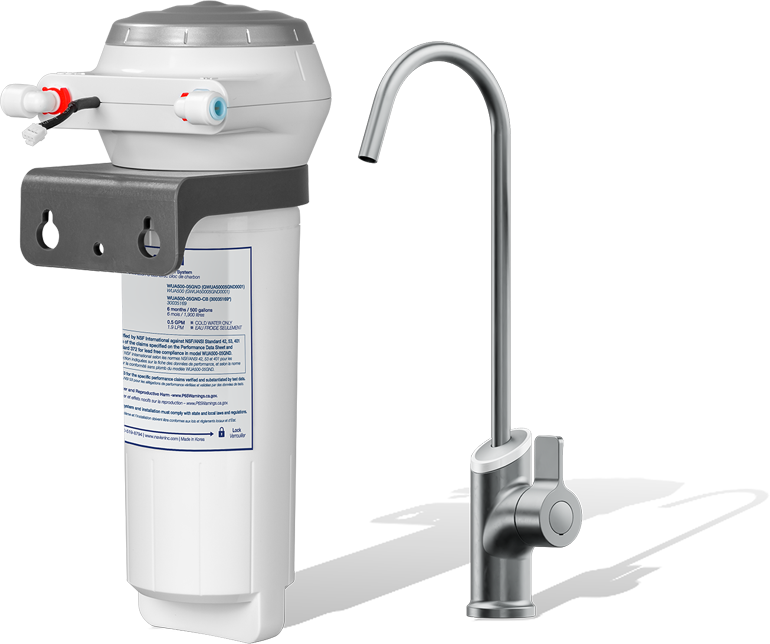

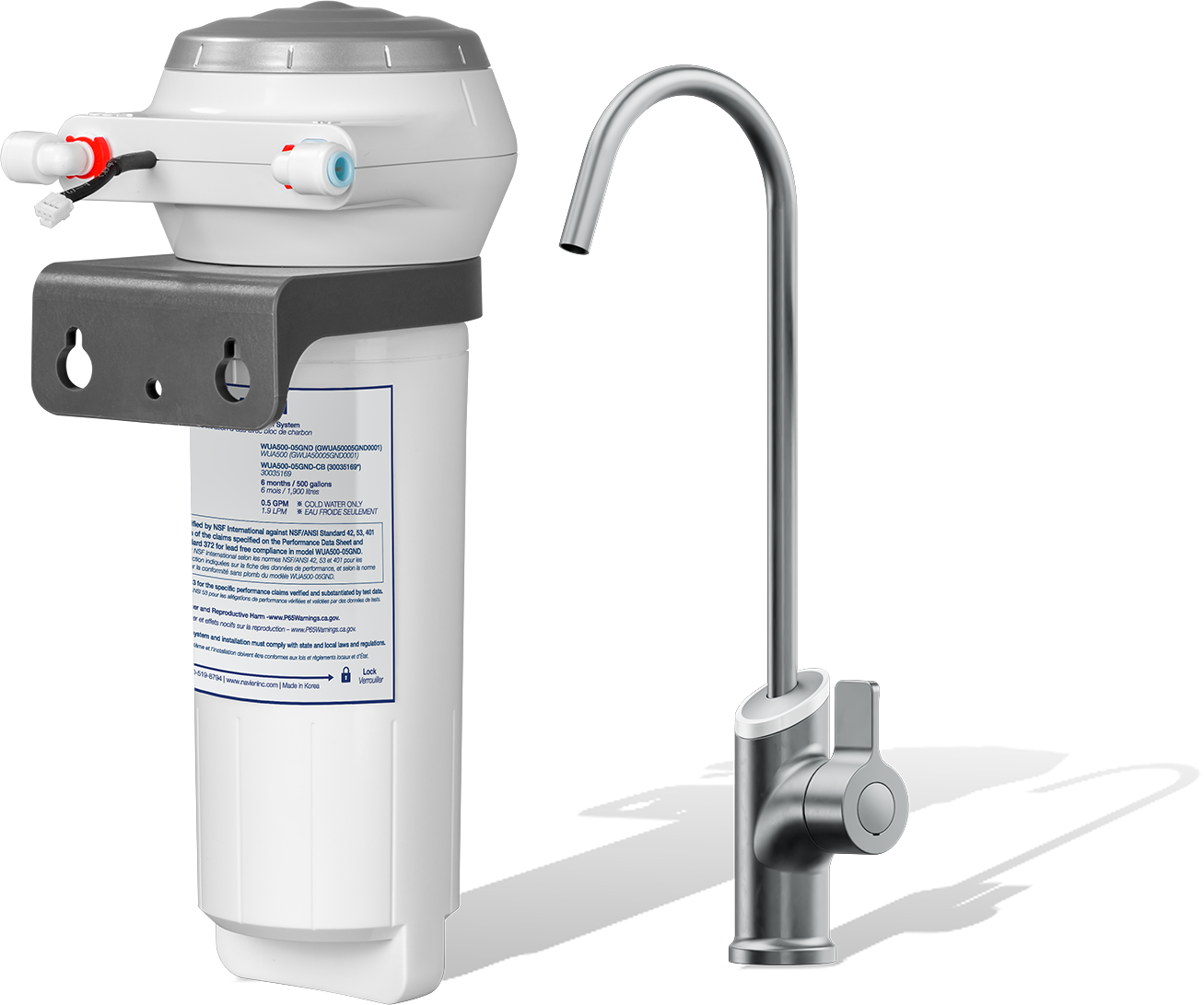

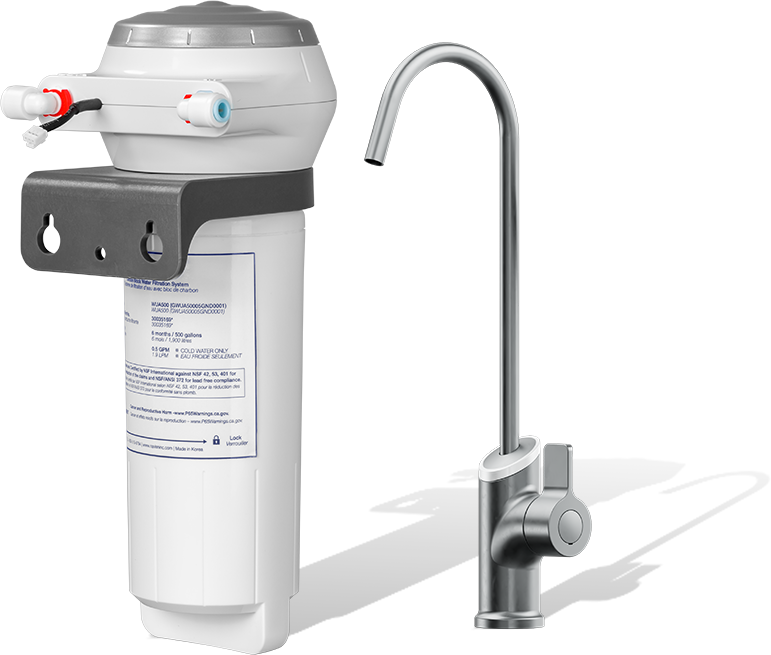

The stylish, chrome faucet with filtration indicator light and cartridge replacement alert.
Activated carbon removes harmful substances, odors, and other contaminants producing improved, great-tasting water.
NSF‑certified products and accessories, rigorously tested to be free from harmful contaminants.
The WUA500 uses a high-quality compressed carbon block to remove chlorine, organic compounds, and heavy metals, while preserving beneficial minerals. Enjoy water that tastes fresher and smells cleaner.

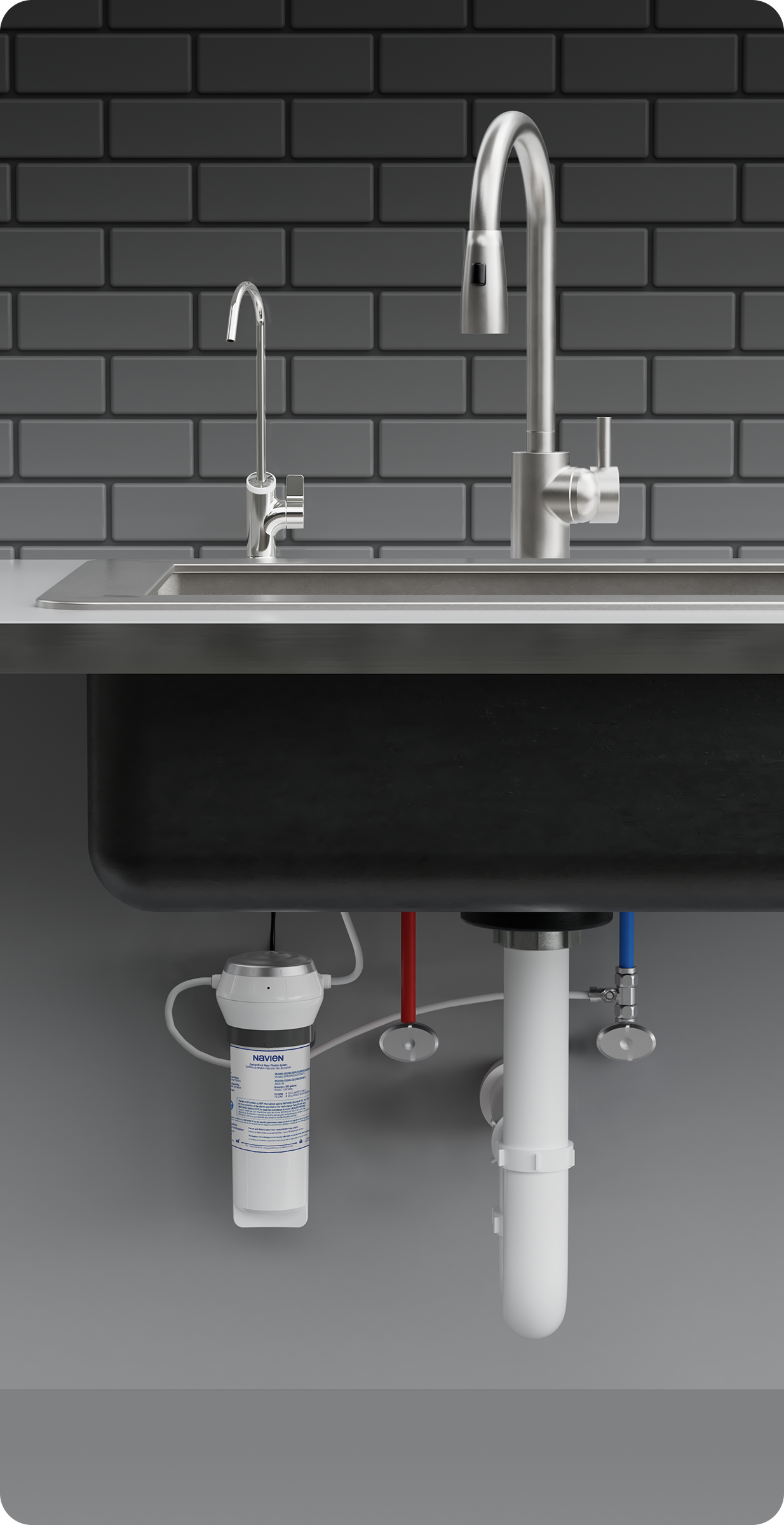

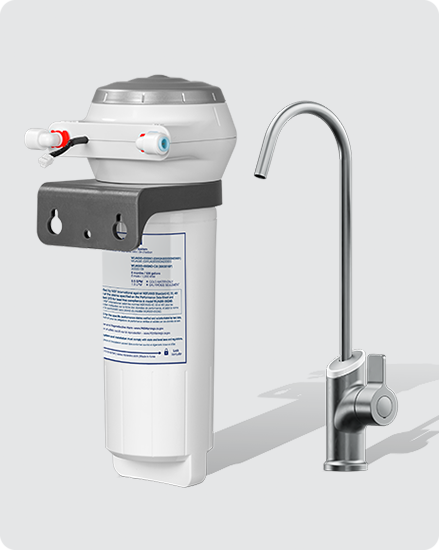

This compact tankless filtration system measures 4.8” x 3.4” x 11.1” (roughly the size of a loaf of bread) and mounts neatly under the sink, connecting directly to your cold water line for reliable filtration.
Most carbon filter systems don’t tell you when to change the cartridge—ours does.
The stylish chrome faucet uses a color LED and audible alerts to tell you when status is normal (blue), ready for a filter change (red), ready for a battery change (sound notification) or past due for a filter change (red with sound notification).
Twist-lock filter with easy-turn handle and built-in shut-off valve ensures clean, dry filter replacements the first time, and every time.
Built for quick, reliable installation—ideal for professionals and end-users.

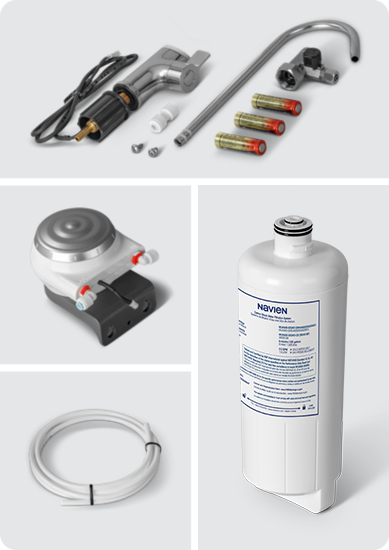

Activated Carbon Block Filter
Removes contaminants like lead, asbestos, chlorine, pharmaceuticals, and more while preserving healthy minerals for taste.
Dedicated Smart Faucet
Stylish faucet with integrated color LED and audible alerts for easy filter and battery monitoring.
Built-in Automatic Shut-Off Valve
Water stops automatically when
cartridge is removed - no need to turn off the water line.
Dedicated Cold Water Hookup
Connects directly to cold water line using included T-adapter and tubing - no special tools or permanent plumbing modifications required.
Easy Twist-Lock Filter
Filter attaches with a firm twist, guided by alignment grooves for fast replacement.
Built-in Mounting Bracket
Simple to operate, and designed for easy filter replacement.
With WUA500, you can enjoy cleaner water with less impact on the environment.
No water waste: Every drop is filtered for use.
Long-lasting filters: Each filter provides up to 500 gallons (1,800 liters) of water—about 6 months of typical household use.
Reduced plastic waste: Cut back on disposable bottles.
| NSF/ANSI 42 - Aesthetic Effects (2) | |||
| Contaminant | Influent Challenge Concentration | Max. Effluent Concentration | Percent Reduction |
| Chlorine Taste & Odor | 2.0 mg/L | ≥50% | >97.4% |
| Nominal Particulate Class 1, ≥0.5 to < 1.0 μm | At least 10,000 & particles/mL | ≥85% | 99.9% |
| NSF/ANSI 53 - Health Effects (18) | |||
| Contaminant | Influent Challenge Concentration | Max. Effluent Concentration | Percent Reduction |
| Atrazine | 0.009 mg/L | 0.003 mg/L | >94.7% |
| Benzene | 0.015 mg/L | 0.005 mg/L | >96.3% |
| Cyst* | Minimum 50,000 cysts/L | 99.95% | >99.99% |
| Lead @ pH 6.5 | 0.15 mg/L | 0.005 mg/L | >99.7% |
| Lead @ pH 8.5 | 0.15 mg/L | 0.005 mg/L | >99.6% |
| Lindane | 0.002 mg/L | 0.0002 mg/L | >99% |
| Mercury @ pH 6.5 | 0.006 mg/L | 0.002 mg/L | 96.2% |
| Mercury @ pH 8.5 | 0.006 mg/L | 0.002 mg/L | 92.2% |
| Turbidity | 11 NTU | 0.5 NTU | 99% |
| 2,4-D | 0.21 mg/L | 0.07 mg/L | 99.9% |
| Asbestos | 10 to 10 fibers/L | 99% | >99% |
| P-dichlorobenzene | 0.225 mg/L | 0.075 mg/L | >99.8% |
| Carbofuran | 0.08 mg/L | 0.04 mg/L | >98.7% |
| Chlorobenzene | 2 mg/L | 0.1 mg/L | >99.9% |
| Endrin | 0.006 mg/L | 0.002 mg/L | >96.8% |
| Ethylbenzene | 2.1 mg/L | 0.7 mg/L | >99.9% |
| O-dichlorobenzene | 1.8 mg/L | 0.6 mg/L | >99.8% |
| Tetrachloroethylene | 0.015 mg/L | 0.005 mg/L | >96.7% |
| Toxaphene | 0.015 mg/L | 0.003 mg/L | >93% |
| 1,2,4-Trichlorobenzene | 0.21 mg/L | 0.07 mg/L | >99.8% |
| * The values are based on the use of Cryptosporidium parvum oocysts. Systems certified for cyst reduction may be used with disinfected water that may contain filterable cysts. | |||
All the stated parameters related to the performance of this product are based on results derived from testing under standard laboratory conditions; actual performance may vary.

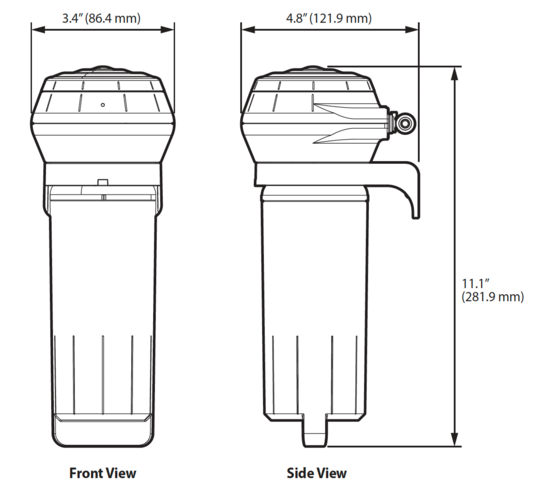

3.4 x 4.8 x 11.1 in (86.4 x 121.9 x 281.9 mm)
| Limited Warranty Period | |||
| Products | Parts Non-Registered | Parts Registered | |
| WUR Series / WUA Series (Excludes Cartridge Filter) |
1 year | 2 years | |
Each filter purifies up to 500 gallons (1800 liters) of water. How long it lasts depends on how much water you use, but on average a cartridge lasts around 6 months.
The WUA500 carbon block filter removes organic compounds like pesticides, herbicides, and volatile organic compounds (VOCs), all of which can affect the taste and odor of well water.
The WUA500 system is ideal for residential kitchens, office break rooms, coffee and tea prep stations, spas and salons, daycare centers, fitness studios, or anywhere you want continuous access to great-tasting drinking water.
The system alerts you with both a red and blue LED light and an audible tone when the battery is low. The alert will sound from under the sink, and the indicator light on the faucet will blink red and blue.
If the filter life has expired and hasn’t been replaced, the faucet will emit a red light and a sound notification. Water flow may also decrease. While the system will not shut off when a new filter is needed, it’s important to replace the cartridge promptly to maintain filtration effectiveness.
No. The system must be installed on a cold water line only. Connecting to hot water may damage the filter and compromise performance.
The WUA500 includes everything needed for most standard under-sink setups, but we recommend hiring an authorized installer to protect your warranty coverage.
